$2,895.00
Plus Shipping
Product Specifications
| Drive Type | Rack and Pinion |
| Battery Powered | Yes |
| Self Installable | No |
| Basic Installation Included | No |
| Standard Capacity | 350 lb |
| Max Track Length, Standard | 15' |
| Track Material | Anodized Aluminum |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | Yes |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | No |
| Warranty | 1 year on batteries, 2 years on parts, 5 years on drive train, motor and circuit board |
| Track Width | 6.5" |
| Call Stations Included | 2 |
| Swivel Seat Rotation | 90 Degrees at top landing |
| Rail Angle, Min | 25° |
| Rail Angle, Max | 45° |
| Digital Diagnostics Display | No |
| Key Lock | No |
The Crest HD Stair Lift Outdoor comes to you at a low price but feature rich.
- ETL listed A17.5 / B44 - A18.1
- Heavy duty canvas cover
- Outdoor powder coating
- Sealed switches and waterproof connections
- Rack and pinion drive
- Interior gear rack
- 25 to 45 degree angle applications
- Quick adjustment limit cams
- Folds to 12.5" from the wall
- Chassis weight 40 lbs.
- Track weight for 8' section 36 lbs.
- Wireless seat control
- Wireless remote controls for upper and lower landings
- 15' track standard, additional sections available
- Chassis mounted auxiliary control switch
- Obstruction audio beep notification
- Battery operated system
- Low profile stair-hugger track and bracket design – 2-1/2" track rest on stairs
- Constant pressure controls
- 3" to 6" horizontal extension at top landing (depending on angle)
- 90 degree swivel seat assembly at top landing
- ANODIZED aluminum rail

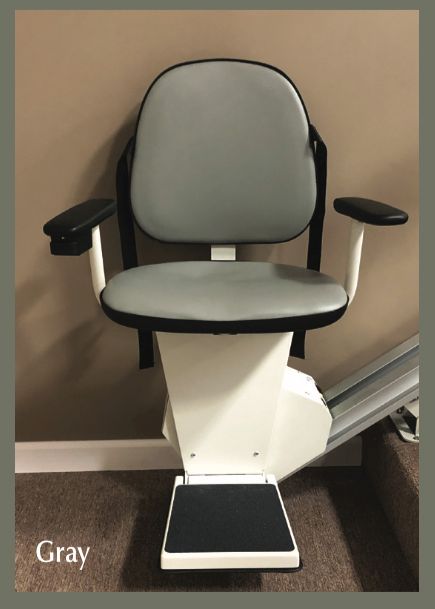

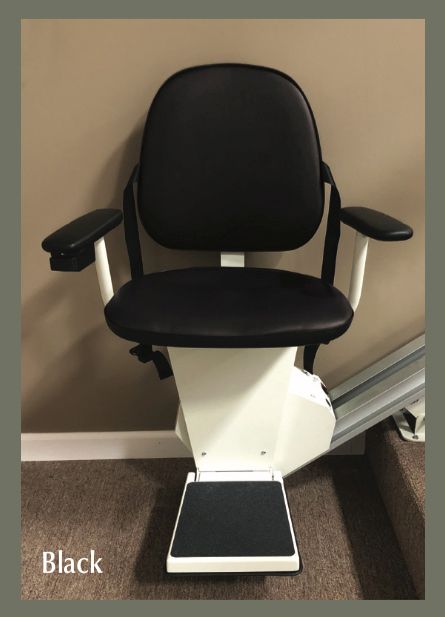

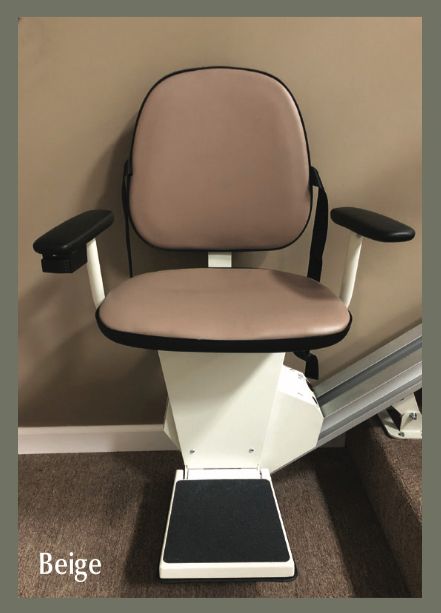

- Black, Gray, Beige or Brown upholstery
- Seat belt
- Folding arm rest
- Proudly made in the USA!
Available Upgrades
Stair Lift Orientation
- Right
+$0.00
- Left
+$0.00
- Right
+$0.00
Upholstery Color
- Black
+$0.00
- Walnut
+$0.00
- Caramel
+$0.00
- Gray
+$0.00
- Black
+$0.00
Seat Width
- Standard
+$0.00
- Arms Extended 2" on Either Side
+$230.00
- Standard
+$0.00
Chassis / Track Custom Color
- Chassis Custom Color
+$310.00
- RAL Color for Chassis Powder Coat
+$0.00
- Track Custom Color
+$462.00
- RAL Color for Track Powder Coat
+$0.00
- Chassis Custom Color
+$310.00
Track Length
- Standard 15' Of Track
+$0.00
- Additional Track (Per Foot) (More Than 1' of Additional Track Incurs Additional Shipping Cost)
+$55.00
- Standard 15' Of Track
+$0.00
Stair Lift Measurements According to Measurement Guide
- Step 1 - Total Staircase Length
+$0.00
- Step 2 - Top Landing to Bottom Step
+$0.00
- Step 3 - Stair Width
+$0.00
- Step 4 - Available Space at Bottom
+$0.00
- Step 5 - Height of One Step
+$0.00
- Step 6 - Length of One Tread
+$0.00
- Step 7 - One Step Front Edge to Front Edge
+$0.00
- Step 8 - Available Space at Top
+$0.00
- Step 1 - Total Staircase Length
+$0.00
Options

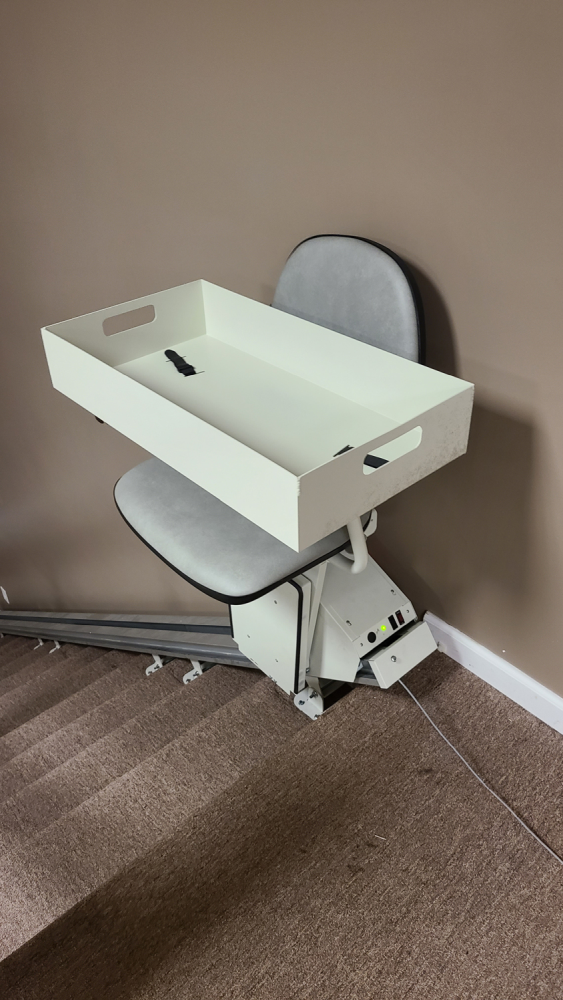

- Cargo Tray Add-On
