$7,250.00
Plus Shipping
Product Specifications
| Drive Type | Helical Worm Drive |
| Battery Powered | Yes |
| Self Installable | Yes |
| Basic Installation Included | No |
| Standard Capacity | 600 lb |
| Max Track Length, Standard | 15.5' |
| Max Track Length, Optional | 40' |
| Track Material | Clear Anodized Aluminum |
| Seat Width | 24" |
| Seat Depth | 16" |
| Swivel Seat | Yes |
| Flip-Up Seat | Yes |
| Flip-Up Armrests | No |
| Constant Pressure Controls | Yes |
| Footrest Safety Sensor | Yes |
| Warranty | 3-Year on Components, 10-Year on Rack , 1-Year on Batteries |
| Call Stations Included | 2 Wireless |
| Rail Angle, Min | 32° |
| Rail Angle, Max | 52° |
| Digital Diagnostics Display | No |
| Key Lock | Yes |

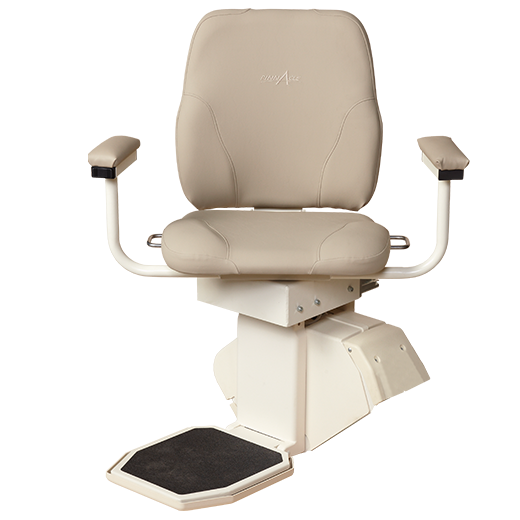

The Pinnacle Heavy Duty Stair Lift offers a high-backed, contoured 24" wide seat which ensures a comfortable and secure ride. The sturdy, stationary armrests and reinforced footrest add stability for safer transfers. It slides out from wall as it pivots at top landing.
As with all Pinnacle stair lifts, the HD model is engineered to the highest industry standards and designed for optimal comfort, convenience and aesthetics.
Extending the many benefits of the Pinnacle’s patented Worm Drive, this stair lift features a premium ride, little to no maintenance, comfortable seating, and ease of access with a 85 degree swivel - and, with extraordinary lifting capacity.
Available Upgrades
Track Lengths Selection: 15' (180") is Standard *
- * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
+$0.00
- 15' (180") of Track
+$0.00
- Length in inches if Shorter than 180" (allow +7" for entry/exit)
+$0.00
- * Actual track is 7" longer. A 7" overrun is required to allow safe entry/exit from seat onto the landing at top of stairs.
+$0.00
Additional Track (Maximum 70' Including the 15' Standard Track)
- Up to 3' of Additional Track
+$250.00
- Up to 5' of Additional Track
+$393.00
- Up to 7'9" (93") of Additional Track
+$536.00
- Up to 3' of Additional Track
+$250.00
Additional Brackets (comes with standard)
- Standard Brackets
+$29.00
- Tall Brackets
+$29.00
- Standard Brackets
+$29.00
Options
- Track Cut to Custom Length (Required for any track cut)
+$143.00
- Key Lock on Chasis
+$143.00
- Seatbelt Extension
+$100.00
- Manual Lowering Tool
+$50.00
- Track Cut to Custom Length (Required for any track cut)
+$143.00
Call Stations
- Top & Bottom Call-Send Stations
+$0.00
- Top & Bottom Call-Send Stations
+$0.00
Orientation (looking UP the staircase)
- The stair lift will be on the left
+$0.00
- The stair lift will be on the right
+$0.00
- The stair lift will be on the left
+$0.00
Installation
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
+$0.00
- Self Installation
+$0.00
- Nationwide Installation
+$599.00
- Nationwide Installation and Measurement Service
+$749.00
- Double Stair Lift Installation Service - Per Stair Lift
+$437.50
- Stair Lift Removal and Disposal
+$499.00
- NOTE: We do not perform installations in Oregon. For residents in Oregon, please choose self-installation at checkout
+$0.00
Installation Special Cases
- Installation On Concrete, Steel, or Tile Stairs
+$300.00
- Installation In Remote or Limited Access Location
+$345.00
- Installation On Concrete, Steel, or Tile Stairs
+$300.00
Measurements
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
+$0.00
- 1. Overall length
+$0.00
- 2. Top stair to bottom stair
+$0.00
- 3. Staircase width
+$0.00
- 4. Bottom clearance
+$0.00
- 5. Rise of one step
+$0.00
- 6. Tread of one step
+$0.00
- 7. Diagonal
+$0.00
- 8. Door at the top
+$0.00
- Need help measuring? Please see our "How to Measure" page.
+$0.00
- Please enter measurements in feet or inches. Customers using the Measurement Service can skip this step.
+$0.00
