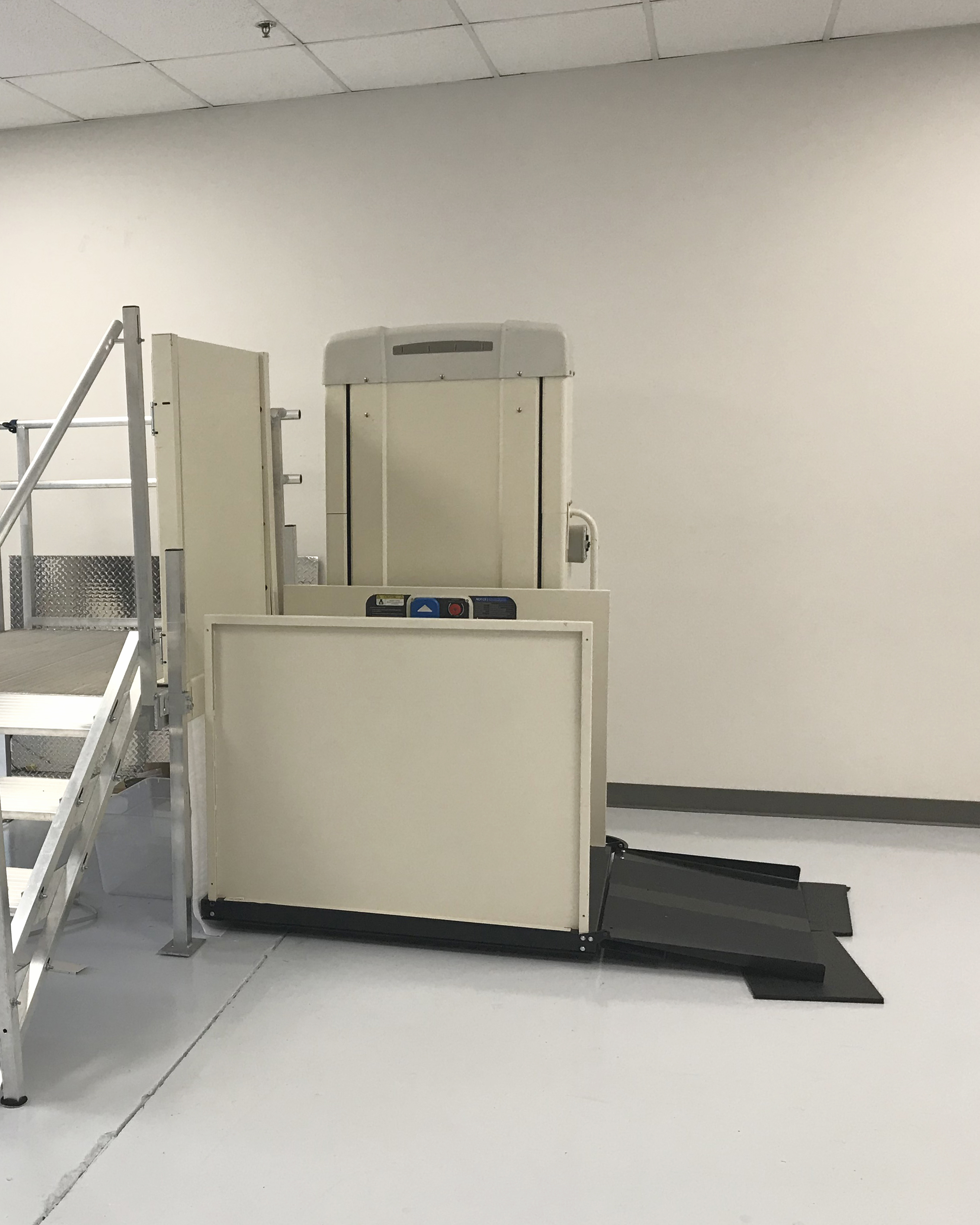

Stratos 750 AC Commercial

$5,695.00

Plus Shipping

Product Specifications

Lifting Capacity	750 lb
Standard Lift Height	53"
Maximum Lift Height	171"
Lift Speed (FPM)	10
Arrives Assembled	Yes
Drive System	1" Diameter ACME Screw
Optional Drive Systems	None Available
Battery Powered Option	Yes
Constant Pressure Platform Control	Yes
Emergency Stop Platform Control	Lighted Emergency Stop with Alarm
Alarm Button	Lighted Emergency Stop with Alarm
Keyed Platform Control	Optional
Call-Send Controls	One Per Stop Included
Optional Call-Send Controls	Keyed and/or Wireless
Platform Type	Solid with Non-Skid Coating
Platform Size	36" x 54" (34" Usable Width)
Optional Platform Sizes	36" x 60" (34" Usable), 42"x 54" (34" Usable), 42" x 60" (40" Usable)
Platform Configuration	Straight-Thru Access
Optional Platform Configurations	Same Side Entry-Exit, 90 Degree Adjacent Access
Upper Landing Gate	Optional
Upper Access Ramp	None Available
Lower Access Ramp	36" Fixed or Auto-Folding Standard, Optional 42" Fixed or Auto-Folding
Grab Rail	Included
Guard Panel	42"
Maximum Stops	3
Other Options	Fire-Rated Doors, Automatic Door Openers

The Stratos VPL represents a new generation and evolution in VPL's. New technologies introduced in the Stratos VPL make this VPL series more reliable, easier to use, easier to service, easier to troubleshoot, and the premiere market choice for platform lift solutions.

Innovation is at the heart of this next generation Vertical Platform Lift. The Stratos VPL is an outstanding choice for vertical lifting solutions in the home or in light commercial settings where an elevator is impractical or unnecessary.

Features:

Guardian System: 4 bright, high-contrast LED status lights give continual performance feedback from the lift's control board. Monitoring almost every critical system, Guardian can provide immediate feedback and guidance.
SteadyDrive: Ensures a smooth, quiet and stable lift.
ReadyUPS System: True battery back-up option that can deliver at least 5-cycles in the event of power loss.
Certifications: ETL listed, CSA B44.1/ASME A17.5, Safety standard ASME A18.1, Rated commercial and residential.

Product Video

Lifting Height
- 53" MAXIMUM LIFT HEIGHT +$0.00
- 77" MAXIMUM LIFT HEIGHT +$1,125.00
- 101" MAXIMUM LIFT HEIGHT +$3,283.00
- 125" MAXIMUM LIFT HEIGHT +$5,033.00
- 149" MAXIMUM LIFT HEIGHT +$6,867.00
- 171" MAXIMUM LIFT HEIGHT +$8,633.00
Power Source
- AC POWERED +$0.00
- READYUPS - BATTERY BACKUP - STD.. 2, 12v @ 12ah +$1,158.00
- READYUPS - BATTERY BACKUP - PLUS.. 4, 12v @ 12ah +$1,325.00
Use Options
- OUTDOOR USE +$211.00
- COLD WEATHER PACKAGE (FOR STANDARD UPS) +$250.00
- COLD WEATHER PACKAGE (FOR PLUS UPS) +$492.00

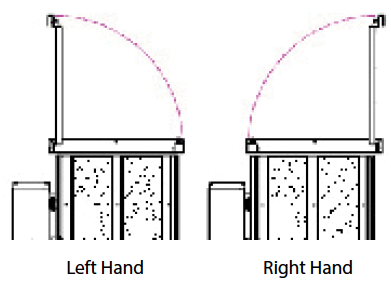

Tower Orientation
- TOWER ON THE LEFT +$0.00
- TOWER ON THE RIGHT +$0.00
Number of Stops
- 2 STOPS +$0.00
- 3 STOPS - INCLUDES 3 CALL/SENDS, 3-STOP PLATFORM CONTROL +$1,084.00
Hoistway Installation
- INSTALLED IN A HOISTWAY +$0.00
- NO HOISTWAY +$0.00
Platform Type (Width, Depth, Height)
- Select From Options Below +$0.00
- Straight Through (180 degrees) +$0.00
- 36 X 54 X 42 STRAIGHT THROUGH PLATFORM +$400.00
- 36 X 60 X 42 STRAIGHT THROUGH PLATFORM +$793.00
- 42 X 54 X 42 STRAIGHT THROUGH PLATFORM +$876.00
- 42 X 60 X 42 STRAIGHT THROUGH PLATFORM +$967.00
- 90 Degree +$0.00
- 36 X 54 X 42 90 Degree LEFT PLATFORM +$793.00
- 36 X 54 X 42 90 Degree RIGHT PLATFORM +$793.00
- 36 X 60 X 42 90 Degree LEFT PLATFORM +$1,159.00
- 36 X 60 X 42 90 Degree RIGHT PLATFORM +$1,159.00
- 42 X 54 X 42 90 Degree LEFT PLATFORM +$1,250.00
- 42 X 54 X 42 90 Degree RIGHT PLATFORM +$1,250.00
- 42 X 60 X 42 90 Degree LEFT PLATFORM +$1,350.00
- 42 X 60 X 42 90 Degree RIGHT PLATFORM +$1,350.00
- Same Side Entry/Exit (0 degrees) +$0.00
- 36 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM +$793.00
- 36 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM +$1,159.00
- 42 X 54 X 42 SAME SIDE ENTRY EXIT PLATFORM +$1,250.00
- 42 X 60 X 42 SAME SIDE ENTRY EXIT PLATFORM +$1,350.00
Platform Gate
- LIFTS 8' AND OVER THAT ARE NOT IN A HOISTWAY REQUIRE A PLATFORM GATE OR AN INTERLOCK FOR A CUSTOMER PROVIDED GATE. +$0.00
- NO PLATFORM GATE +$0.00
- 36 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT +$1,283.00
- 36 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT +$1,283.00
- 42 X 42 PLATFORM GATE W/EMI INTERLOCK, LEFT +$1,542.00
- 42 X 42 PLATFORM GATE W/EMI INTERLOCK, RIGHT +$1,542.00
Platform Controls
- Paddle Controls with Emergency Stop Button +$0.00
- Emergency Stop Alarm with Lighted Button - Included +$0.00
Platform Options
- Keylocks for Controls +$116.00
- CHICAGO KEY UPGRADE FOR KEYED CONTROLS (EACH) +$150.00
Ramp Type
- 36" AUTO-FOLD RAMP +$0.00
- 42" AUTO-FOLD RAMP +$108.00
- 36" FIXED RAMP +$0.00
- 42" FIXED RAMP +$109.00
- Pit, no Ramp, add Pit Switch +$242.00
Landing Gate
- 36 X 42 LANDING GATE W/EMI INTERLOCK, LEFT +$1,325.00
- 36 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT +$1,325.00
- 42 X 42 LANDING GATE W/EMI INTERLOCK, LEFT +$1,541.00
- 42 X 42 LANDING GATE W/EMI INTERLOCK, RIGHT +$1,541.00
Landing Gate Call/Send
- CALL-SEND ROCKER SWITCH FOR LANDING GATE +$133.00
- CALL-SEND ROCKER SWITCH W/KEY FOR LANDING GATE +$226.00
Fire Rated Doors
- 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH +$3,833.00
- 36" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH +$3,833.00
- 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-LH +$3,908.00
- 42" FIRE-RATED HOISTWAY DOOR W/EMI INTERLOCK-RH +$3,908.00
Automatic Opener
- AUTOMATIC OPENER FOR LANDING GATE +$2,991.00
- AUTOMATIC DOOR OPENER FOR FULL DOOR +$2,983.00
Interlocks
- INTERLOCKS BELOW ARE FOR A CUSTOMER PROVIDED DOOR OR GATE. +$0.00
- EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - LH +$559.00
- EMI INTERLOCK FOR DOOR/GATE PROVIDED BY OTHERS - RH +$559.00
- OTHER INTERLOCK OPTIONS +$0.00
- WIRING FOR INTERLOCKS PROVIDED BY OTHERS +$292.00
- KEYED DEAD LATCH FOR USE W/FLUSH MOUNT ELECTRIC STRIKE +$251.00
Call Send Options
- CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH) +$242.00
- KEYED CALL/SEND STATION CONTROL BOX - TOP/BOTTOM (EACH) +$325.00
- WIRELESS CALL/SEND CONTROLS FOR 1 LANDING +$367.00
- WIRELESS CALL/SEND CONTROLS FOR 2 LANDINGS +$717.00
- WIRELESS CALL/SEND CONTROLS FOR 3 LANDINGS +$1,067.00
Fascia Panels
- NO FASCIA PANELS +$0.00
- FASCIA PANEL; 41" WIDE x 24" TALL +$109.00
- FASCIA PANEL; 41" WIDE x 53" TALL +$150.00
- FASCIA PANEL; 47" WIDE x 24" TALL +$133.00
- FASCIA PANEL; 24" WIDE x 53" TALL +$208.00
- FASCIA PANEL: 41" WIDE, CUSTOM CUT TO HEIGHT +$217.00
- FASCIA PANEL: 47" WIDE, CUSTOM CUT TO HEIGHT +$242.00
Additional Options
- TOWER BRACE WITH BRACKET +$283.00
- PHONE JACK +$251.00
- EMERGENCY TOWER LIGHT, BACK-UP +$250.00
- EXTRA KEYS (EACH) +$42.00
- CUSTOM COLOR (ALLOW 6-8 WEEKS) +$0.00
- FLOAT LEVEL SWITCH +$242.00
