Product Specifications

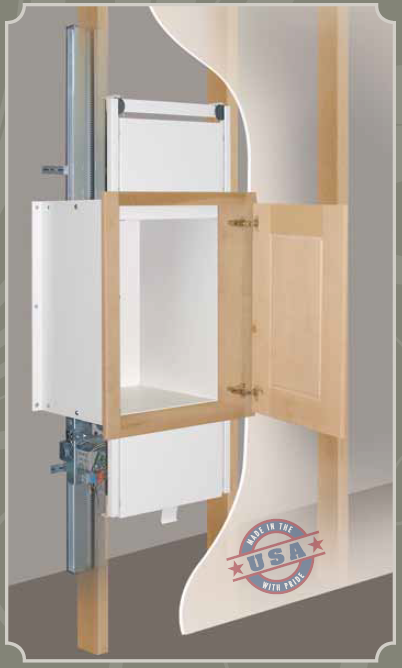

- Rack and pinion drive
- No slack cable lock-ups
- Battery operated
- Fast and easy installation – plug and play
- Aluminum rail instead of steel T-rail
- No separate machine room required
- No remote mounted controller
- On board diagnostic troubleshooting LED light
- 20" Wide x 20" Deep x 30" High – 200 lbs capacity
- 24" Wide x 24" Deep x 30" High – 200 lbs capacity
- 30" Wide x 30" Deep x 36" High – 275 lbs capacity
- Optional stainless steel car
- Warranty 5 years on motor and gear, and 2 years on all other parts
Available Upgrades
Stops
Car Door Placement (in reference to the track)
Car Dimensions
Car Material

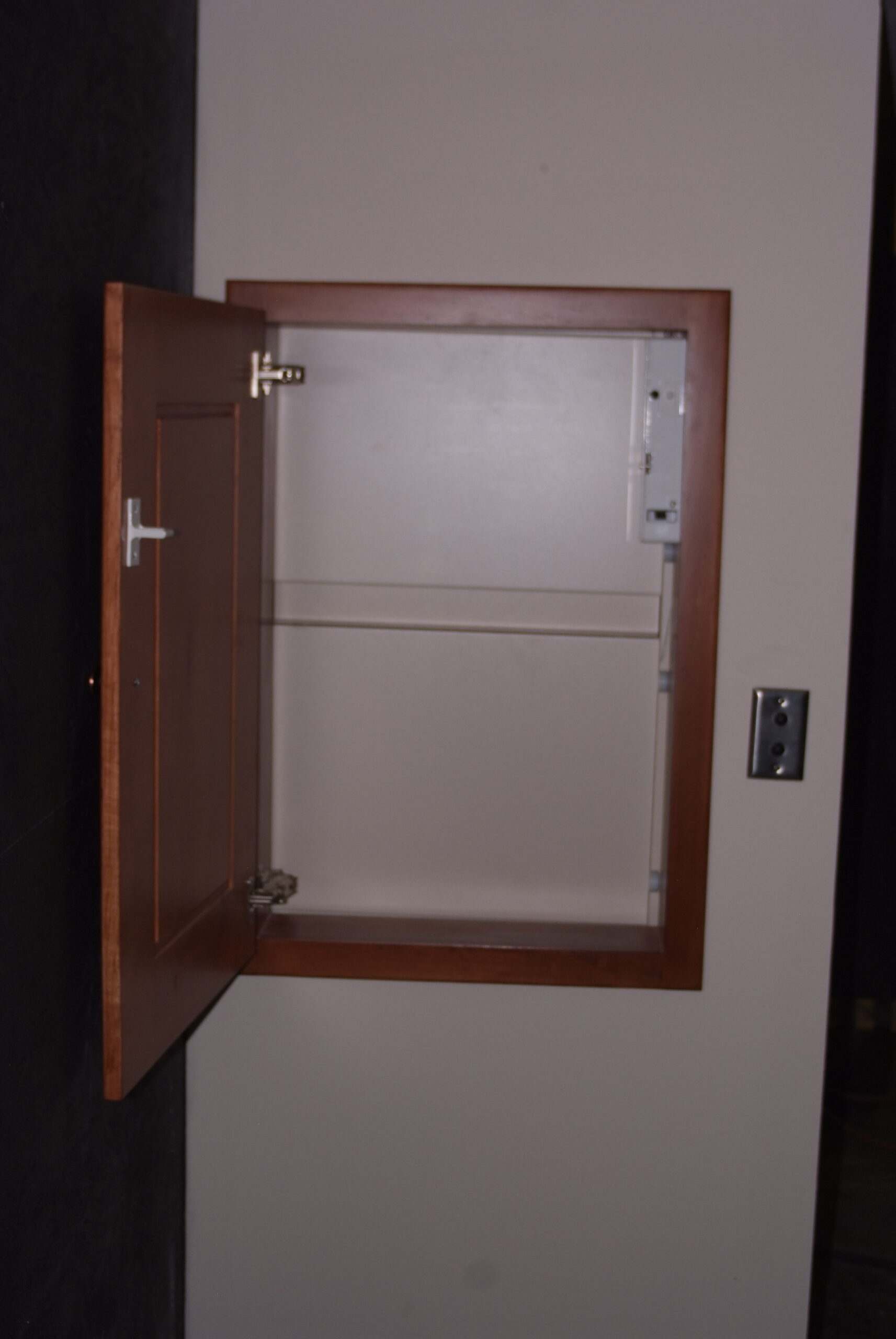

Car Shelf
Call/Send Controls
First Landing Door Locations
Second Landing Door Locations
Third Landing Door Locations (if 3 or 4 Stop)
Fourth Landing Door Locations (if 4 Stop)
First Landing Hoistway Door Swing
Second Landing Hoistway Door Swing
Third Landing Hoistway Door Swing (if 3 or 4 Stop)
Fourth Landing Hoistway Door Swing (if 4 Stop)
Additional Options
RDI Interlock
Track
Hoistway/Access Doors
Dumbwaiter Shipping
Optional Fire Proof Landing and Machine Access Doors
- Stainless Steel (#4 finish) Swing Door - 1.5 Hour Fire Rated +$0.00
- 20" W x 30" H - Right Hand +$1,397.00
- 20" W x 30" H - Left Hand +$1,397.00
- 24" W x 30" H - Right Hand +$1,397.00
- 24" W x 30" H - Left Hand +$1,397.00
- 30" W x 36" H - Right Hand +$1,556.00
- 30" W x 36" H - Left Hand +$1,556.00
- Machine Access Door +$0.00
- 18" W x 18" H Stainless Steel - Right Hand +$1,000.00
- 18" W x 18" H Stainless Steel - Left Hand +$1,000.00
Mounting Surface For Optional Fire Proof Doors
Crating and Shipping Preparation for Optional Fire Proof Doors
Freight for Optional Fire Proof Doors
Delivery Option for Optional Fire Proof Doors
